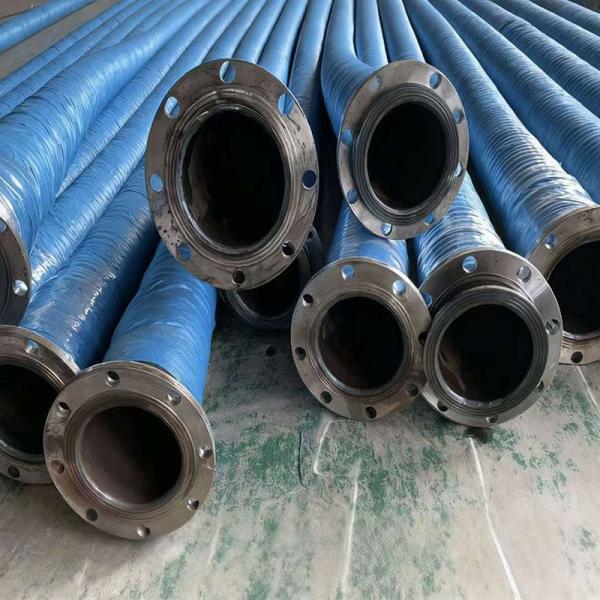

High Pressure Wear Resistant Flexible Slurry Suction Hose for Dredging and Mining

Brand Name : Hongruntong Marine

Model Number : HM-SSH61

Certification : ABS, DNV, RMRS, CCS, LR, BV, SGS, V-Trust

Place of Origin : China

MOQ : 1

Price : $13-$956

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 6523 Pcs Per Month

Delivery Time : 5-7 Work Days

Packaging Details : Wooden Pallets, Wooden Box

Product Name : Slurry Suction Hose

Reinforcement : High Strength Synthetic Cord with Helix Wire

Diameter : 152mm-1300mm

Working pressure : 0.4MPa to 2.5MPa

Advantages : Wear Resistance

Temperature : -40℃ to 80℃

Feature : Corrosion Resistance

Material : Natural Rubber

End Connections : Built in Steel Flanges

Application : for Suction and Discharge of Abrasive Materials In Slurry Applications

Keywords : Rubber Hose

Contact Now

High Pressure Sand Suction Dredge Hose Flexible Durable Long Lifespan
The slurry suction hose is a heavy-duty flexible hose designed to reliably transport high-solid, abrasive mixtures (slurries) from one location (e.g. dredging head, mine pit, sediment basin) into pumps or pipelines. It is built to resist internal wear from abrasive particles, external mechanical damage, vacuum collapse under suction, and maintain flexibility under varying pressures and bending stresses. Such hoses are critical in dredging, mining, tunneling, and dewatering operations where large volumes of abrasive fluid mixtures must be moved continuously and with minimal downtime.
Case Study: River Dredging Project, Southeast Asia
Project Overview
A river dredging contractor was tasked with removing silt and sand from a riverbed stretch of 5 km, depth 8 m. The dredging system employed a cutter suction dredge with a 14-inch slurry suction hose connecting the dredge head to the pump on the vessel.
Initial Challenge
Initially, the client used a generic hose that suffered rapid wear of the inner lining, frequent leaks, and vacuum collapse under heavy suction, leading to downtime every few days for replacement.
Hongruntong Solution
Hongruntong Marine supplied them with a 14″ ID slurry suction hose with a multilayer reinforced design: a thick wear-resistant rubber liner, dual steel wire helix reinforcement, external abrasion protective cover, and full flange ends.
Results
Over a six-month campaign, the Hongruntong hose lasted more than double the previous service life, with zero vacuum collapse events, and reduced maintenance stops by 60%. The client reported cost savings of 25% over the project life due to fewer hose replacements and reduced labor downtime.
Additional Case: Mining Tailings
A mining tailings pond dewatering job used 300 mm ID hoses. The project experienced heavy abrasive coal tailings. The Hongruntong suction hoses ran continuously for 1200 operating hours with only minimal wear on the liner and no structural failures.
High Pressure Wear Resistant Flexible Slurry Suction Hose for Dredging and Mining High Pressure Wear Resistant Flexible Slurry Suction Hose for Dredging and Mining
Specifications
Construction
Inner Liner Natural rubber in various thicknesses and compounds
Reinforcement Nylon cord fabric with spring steel wire helix
Outer Cover Black abrasion and UV-resistant natural rubber
Technical Specifications
Hose Size 50~1500
Hose Length Up to 12m
Pressure Rating 5-40bar
Temperature Rating -40°C to +80°C
Safety Factor 4:1
Bend Radius 8 to 10 times diameter (Standard)
End Fittings Fixed flanges, swivel flanges, plain cut, cuffed, swollen, custom fittings
Flange Types D, E, F, ANSI 150, ANSI 300, Custom
Materials Stainless steel, Hot-dipped galvanised, Carbon steel, Custom paint
Performance Data
Inner Diameter (mm) Working Pressure (Mpa) Burst Pressure (Mpa) Length (m) Wall Thickness (mm)
300 0.4-1.2 3.6 1-3 34-37
414 0.4-1.2 3.6 1-3 35-37
560 0.4-1.2 3.6 2-3 40-45
600 0.4-1.2 3.6 2-3 40-45
700 0.8-1.5 4.5 2-3 40-45
800 1.2-2.5 5.5 2-3 50-52
900 1.5-2.5 7.5 2-3 55-58
1000 2.0-2.5 7.5 3-5 75-78
Key Features
Thick Abrasion-Resistant Inner Liner with Optimized Rubber Compound
The inner tube is made from a proprietary rubber blend (NR + SBR + carbon black + wear additives) specifically formulated for high abrasion resistance. Its thickness is greater than standard hoses, which gives a generous safety margin against wear. The specially designed compound resists micro-cutting and fatigue by abrasive solids (sand, silt, particles) even under turbulent flow. Over long durations, the liner wears slowly and uniformly, extending hose life and enabling predictable maintenance intervals.
High Strength Reinforcement with Steel Wire Helix and Synthetic Plies
To resist internal collapse under suction and external mechanical loads, the hose is reinforced with helical steel wire embedded in multiple synthetic textile plies. The wire helix provides resistance to vacuum collapse and compressive forces, while the synthetic cord plies distribute tensile loads and bending stresses. The layered reinforcement design ensures the hose maintains shape under negative pressure, resists kinking under bending, and sustains repeated flexing cycles without delamination.
Robust External Cover and Abrasion/Weather Protection
The outer cover uses highly abrasion-resistant rubber or polymer blends, sometimes with extra scuff guards or reinforcement strips in high-wear zones. It protects against external mechanical trauma: dragging over rocks, contact with heavy machinery, UV exposure, ozone aging, and chemical attack. Some hoses also include anti-cut or anti-abrasion fabric overlays. This external durability means the hose can survive the rugged jobsite environment without external damage that might otherwise expose the reinforcement layers.
Stable Vacuum Performance, Flexibility, and Low Deformation Design
Hongruntong's hose design ensures stable performance under high suction (vacuum) loads. Thanks to the robust reinforcement and controlled geometry, the hose resists deformation and buckling even when suction is strong. Meanwhile, the hose retains sufficient flexibility so it can curve and navigate around obstacles with minimal stress concentration. The balance between structural rigidity and flexibility is engineered to minimize fatigue stress and allow long continuous service. Additional design features (e.g. optimized bend radius, gradual wall thickness transitions) help reduce flow turbulence and stress concentration at ends.
Applications
Dredging Riverbed Excavation
In dredging operations, slurry suction hoses are used to draw sediment, sand, silt, and debris from water bodies into dredge pumps or barges. The hose must sustain high abrasion from sediment and suspended solids, resist vacuum collapse under suction, and endure bending/movement as the dredge head moves. The Hongruntong hoses are suited for river, canal, coastal, port, and reservoir dredging tasks.
Mining Tailings Handling
Mines often produce tailings: mixtures of water and fine mineral particles. Slurry suction hoses are used to extract tailings for transport, settling, or reprocessing. The hoses work in harsh, abrasive, and often corrosive environments; they must be reliable over long continuous runs. Hongruntong's hoses are well suited for dewatering pits, transferring tailings to ponds, or pumping slurries to processing plants.
Construction Tunneling Dewatering
In underground construction, tunnels or excavations often accumulate slurry or muddy water mixed with rock cuttings and fines. Slurry suction hoses serve to pump these mixtures out from the working face to surface or settling tanks. They must tolerate abrasive solids, sediment-laden water, heavy suction loads, and variable layouts. Their flexibility allows easy routing in confined, curved corridors.
Why Choose Hongruntong Marine
Deep Experience in Marine Dredge Applications
Hongruntong Marine has decades of experience designing hoses for marine, dredging, and coastal engineering environments. We fully understand the dynamic loads, corrosion, fatigue, and motion factors in marine settings. Our R&D and field teams calibrate hose designs to resist vortex-induced vibrations, bending fatigue under wave motion, and saltwater corrosion. That domain knowledge lets us deliver hoses that outperform generic industrial ones in challenging marine/dredge contexts.
Strict Quality Control Advanced Testing Facilities
At Hongruntong, every hose undergoes rigorous factory acceptance tests (FAT): burst pressure testing, vacuum collapse testing, bending fatigue cycles, abrasion wear trials, and hydrostatic endurance tests. We use advanced instrumentation (strain gauges, deformation sensors) to confirm design margins. Quality assurance is backed by ISO systems, traceability, and documentation. This ensures consistent, reliable performance across batches.
Custom Engineering Tailored Solutions
We don't just sell off-the-shelf. Each project gets custom engineering: appropriate inner liner compound, reinforcement layer design, hose dimensions, bend radius, end fittings (flanges, couplings, swivel joints), buoyancy aids (if floating), or anti-kink features. We also provide detailed finite element modeling of hose life under dynamic loads, so clients know expected service life before deployment.
After Sales Support Global Service Network
We back our product with responsive support: installation guidance, monitoring of in-service hoses, spare parts, wear prediction services, and rapid replacement. With a distributed service network globally, we can ship replacements or support locally in key dredging/mining regions. We also train clients on proper deployment, maintenance (flushing, inspection) to maximize life. The result: lower total cost of ownership, fewer failures, and reliable uptime.
Frequently Asked Questions
1. What is the typical lifespan of your slurry suction hose?
The service life depends on slurry abrasiveness, particle size, flow turbulence, suction pressure, and operation schedule. For typical river dredging (sand/silt slurry), our hoses often last 1,200-2,000 operating hours before reaching wear limits. In less abrasive slurries, lifespan may extend further. We provide wear maps and predictive maintenance scheduling to optimize replacement timing.
2. Can the hose handle negative pressure (vacuum) without collapsing?
Yes. Our hoses are engineered with robust steel helix and reinforcement layers sized to resist collapse under classed negative pressures. We test vacuum collapse at multiple safety margins (e.g. 1.5× design suction) to ensure structural stability under real conditions.
3. What end fittings do you offer?
We supply standard flanged ends (ANSI, DIN, JIS), quick-connect couplings, swivel joints, cam-lock, or custom couplers as per client requirement. We can integrate reinforced flanges or welded-on stub pipes. All fittings are designed to minimize stress concentrations and ensure smooth flow transitions.
4. How do you mitigate hose damage from dynamic bending or kinking?
Our hose designs consider minimum bend radii, gradual transitions, and reinforcement lay patterns that resist stress concentration. For highly mobile or flexible installations, we incorporate anti-kink spiral wires or fabric stiffeners. We also run fatigue cycle testing to ensure the hose can endure repeated bending over its life.
5. What maintenance practices do you recommend?
  • Regular inspection for liner wear thickness (e.g. via end-cut measurements)
  • Flushing after operation to remove residual abrasive solids
  • Avoid sharp bends or sudden changes in curvature
  • Secure hose routing to prevent external abrasion from dragging on surfaces
  • Monitor for leaks, bulging, or distortion
  • Keep spare hose segments and clamps available for quick replacement
